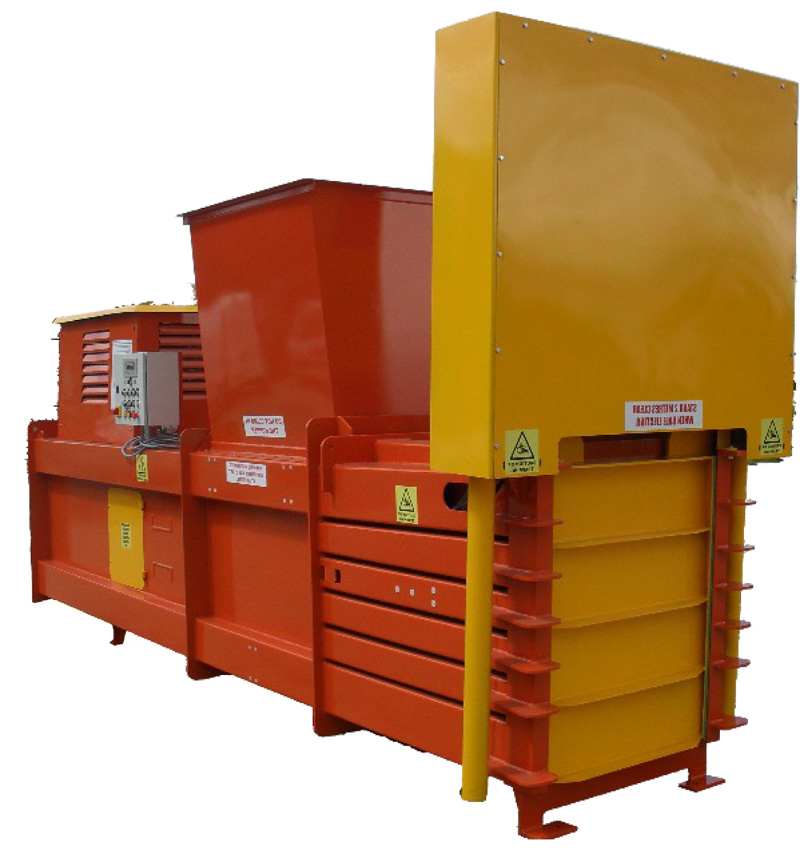

MHM Powerbale 40XL Semi-Automatic Horizontal Baler

This Semi-Automatic Horizontal Baler has the smallest footprint in the POWERBALE range. It is ideal for sites with a limited space, where maximum performance is required.

Categories: , Tags: ,

Description

This Semi-Automatic Horizontal Baler has the smallest footprint in the POWERBALE range. It is ideal for sites with a limited space, where maximum performance is required.

It can produce bales sizes of 1200mm x 800mm x 1100mm (L x W x H) with weights up to 600kg depending on the waste stream. Baling performance is up to 2 tonnes of material per hour.

The 40XL has got “Full Bale Eject” system through hydraulic portcullis door, which can be equipped with manual or hydraulic door lock mechanism.

Fitted as standard are Replaceable Wear Plates inside the baling chamber which guarantees an exceptionally long serviceable life to the machine. Optional Dual Product Switch allows to change baling capabilities for different products to ensure consistency of bale weights. Simple and clean control panel with large LCD screen make machine easy to operate.

Heavy duty serrated sutting knife makes light work of cutting and baling with the minimum amount of effort.

Technical Specification

Technical Specification:

Bale Size Nominal: 1200 x 800 x 1100 (L x W x H mm)
Bale Weight: up to 600Kg (dependent on waste stream)
Compaction Force: 40 Tonnes
Cylinder Bore: 160mm
Motor Power: 7.5kW
Power Supply Rating: 16 Amp 3P & E, C-type breaker
Average Cycle Time: 38 Seconds (approx)
Bale Discharge: Full Eject
Bale Chamber End Door: Manual Open, Hydraulic or manual clamp
Wire/Tape Tying: 5 Horizontal Wire Ties
Bin Tipper Tying: 240 – 66- Litre (optional)
Bale Made Light: Standard
Baling Wire or Tape Holders: Standard
Automatic & Manual Cycle Operation: Standard
Bale Chamber Wear Plates: Standard
Shear Blades: Standard

Dimensions:
Loading Aperature Nominal: 1250mm length x 800mm wide
Loading Height: 1650mm
Overall Baler Length: 5130mm
Overall Baler Width: 1360mm (without bin lift)
Overall Height: 2570mm
